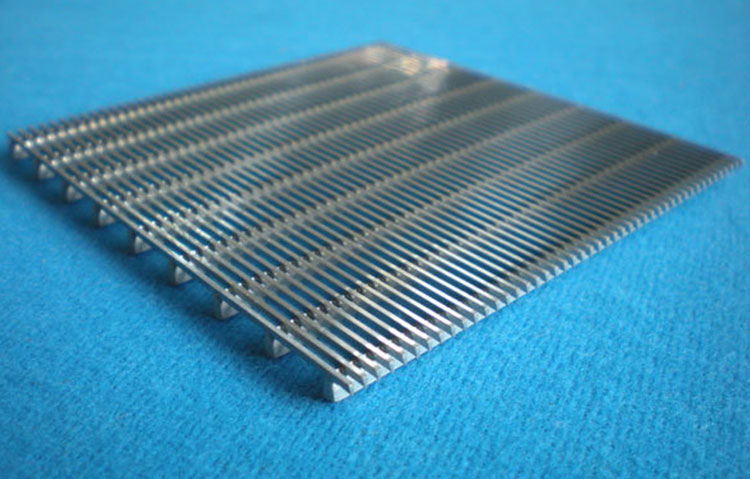

Welded Wedge Pane

Welded wedge panels, also referred to as welded wedge wire panels, represent a specialized form of filtration apparatus extensively employed in industrial settings for solid-liquid separation, filtration, dewatering, and sizing functions. These panels exhibit a unique construction, characterized by the welding of individual wedge wire profiles onto support rods, thereby forming a robust and continuous screening surface.

The welded configuration of wedge wire panels provides several advantages over conventional screen assembly techniques, such as wrapping or looping wires onto support rods. By directly welding the wedge wire profiles onto the support rods, a sturdier and more stable screen structure is achieved, capable of withstanding elevated pressures, temperatures, and mechanical stresses inherent in industrial environments.

A primary advantage of welded wedge panels lies in their precise and uniform slot openings, meticulously engineered to meet specific application requirements. These slot openings can range from mere microns to several millimeters in width, affording precise control over particle size separation and filtration efficiency.

Notably resistant to abrasion, corrosion, and chemical degradation, welded wedge panels are well-suited for deployment in harsh and corrosive settings. They boast exceptional durability and prolonged performance, leading to reduced maintenance and replacement costs over time.

Available in diverse configurations, including flat panels, curved screens, cylinders, and baskets, welded wedge panels cater to varied equipment and installation needs. They can be custom-designed with different wire profiles, slot sizes, and support structures to address the unique demands of each application.

Welded wedge panels find wide-ranging utility across industries such as water treatment, pulp and paper processing, mining, food and beverage, petrochemicals, and pharmaceuticals. They serve purposes ranging from dewatering and desalination to solid-liquid separation, filtration, sizing, and screening of diverse materials and fluids.

In summary, welded wedge panels represent versatile, durable, and efficient screening solutions employed in diverse industrial processes for solid-liquid separation and filtration. Their welded construction, precise slot openings, and customizable design render them indispensable components across numerous processing operations, enhancing efficiency, productivity, and product quality.
