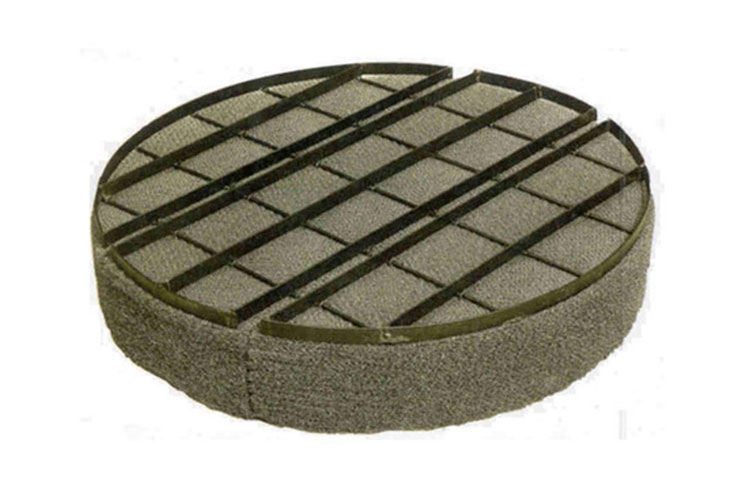

Demister Pad

Demister pads, also known as mist eliminators or mist pads, are specialized devices used in various industrial processes to remove entrained liquid droplets (mist) from gas streams. These pads are essential components in equipment such as distillation columns, evaporators, scrubbers, and gas-liquid separators, where the separation of liquids from gas is critical for process efficiency and product quality.

The design of demister pads typically consists of multiple layers of knitted or woven wire mesh arranged in a grid-like pattern. These layers are stacked and compressed to form a dense pad with a high surface area. The wire mesh is selected based on factors such as material compatibility, corrosion resistance, and mechanical strength to suit the specific operating conditions and the composition of the gas stream.

When the gas stream containing liquid droplets passes through the demister pad, the droplets come into contact with the wire mesh surfaces. Due to the high surface area and tortuous path provided by the mesh structure, the droplets coalesce and form larger droplets, which are then captured and drained by gravity or removed by a separate liquid collection system. The treated gas exits the demister pad with significantly reduced liquid content, achieving the desired separation efficiency.

Demister pads offer several advantages in industrial applications, including improved product quality, increased process efficiency, and enhanced environmental compliance by reducing emissions. They help prevent carryover of liquid droplets, which can cause fouling, corrosion, and product contamination in downstream equipment.

Common materials used for demister pads include stainless steel, polypropylene, and PTFE (Teflon), chosen based on factors such as temperature resistance, chemical compatibility, and mechanical properties. Demister pads are available in various sizes, configurations, and densities to accommodate different flow rates, gas compositions, and process requirements.

In summary, demister pads are vital components in industrial gas-liquid separation systems, providing efficient and reliable removal of liquid droplets from gas streams. Their versatile design, high separation efficiency, and compatibility with a wide range of operating conditions make them indispensable in numerous industries, including petrochemical, chemical, refining, and environmental engineering applications.
